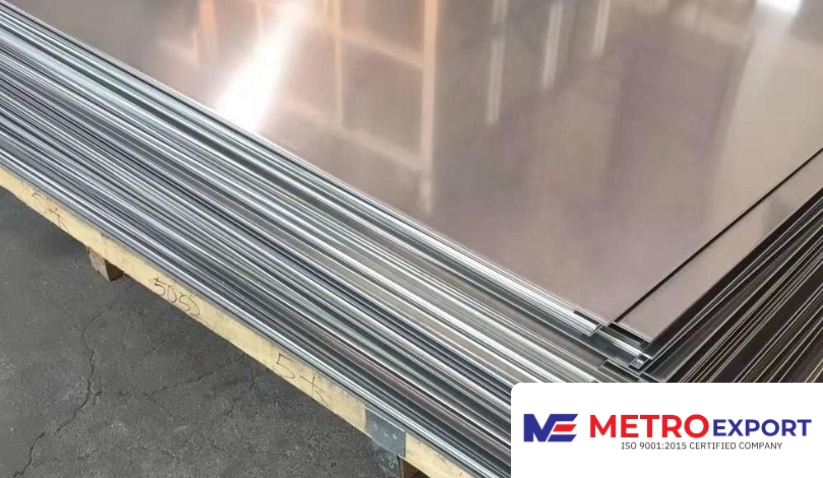

Metro Export is one of the largest Titanium Grade 5 Plate Manufacturers in India. We supply our Ti Gr 5 Plate based on advanced technology and complying with the Quality and Testing requirements. Our plates are serving such key application sectors as aerospace, chemical processing, marine equipment, and medical devices, and we are highly reliable. We manufacture Mirror Finish Titanium Gr 5 Polished Cold Drawn Plates and with hot rolled process alternatives with the assistance of accurate Alloy Creation techniques. Every Titanium Grade 5 Clad Plate is filled with safe packaging solutions to ensure that there is maintainability and performance during transit.
Metro Export is a approved Titanium Grade 5 Plate Manufacturer and Supplier in India, and is a supplier of iso certified Titanium Grade 5 Plate that can meet the stringent industry requirements. Our Titanium CP Grade 5 Chequered Plates are fully tested in terms of materials and come in various thicknesses and sizes, including 6 mm, 8 mm, 10 mm, and others. We supply ASME SB265 Titanium Grade 5 Plates that have been engineered to perform optimally in machining/cutting, even under market fluctuations. We also established a Titanium Grade 9 Plates Manufacturer in India.
| Specification | Titanium Grade 5 Plate |
| Standard | ASTM B265 / ASME SB265, AMS 4911 |
| Size | 8mm to 100mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc |
| Form | Coils, Foils, Rolls, Plain Plate, Shim Plate, Perforated Plate, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled Plate (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |


| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 5 | 3.7035 | R50400 |
| Grade | C | N | O | H | Ti | Fe | V | Al |
| Titanium Gr 5 | 0.10 max | 0.05 max | 0.20 max | 0.015 max | bal | 0.30 max | 3.5-4.5 | 5.5-6.75 max |
| Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson's Ratio |
| 130 | 120 | 16.4 | 114 GPa | 0.30-0.33 |
| Stock Available In Titanium Grade 5 Plate | |
| Titanium Gr 5 Hot Rolled Plate | UNS N56400 Grade 5 Titanium Cold Rolled Plate |
| ASTM B265 Titanium Grade 5 Perforated Plate | Grade 5 Titanium Embossed Plate |
| Titanium Gr 5 BBQ Plate | Grade 5 Titanium Embossed Plate |
| Titanium Gr 5 Quarto Plate | ASTM B265 Titanium Grade 5 Chequered Plate |
| Titanium Alloy Gr 5 Plasma Cutting Plate | Titanium Grade 5 Custom Cut Plate |
| Titanium Grade 5 Diamond Plate | Titanium Gr 5 Plate Mill Finish |
| Grade 5 Titanium DIN 3.7165 Thin Plate | Titanium Grade 5 Clad Plate |
| 3.7165 Grade 5 Titanium Checkered Plate | Grade 5 Titanium Alloy Tisco Plate |
| 3.7165 Titanium Grade 5 Plate Brushed Finish | UNS N56400 Titanium Grade 5 Tread Plate |
